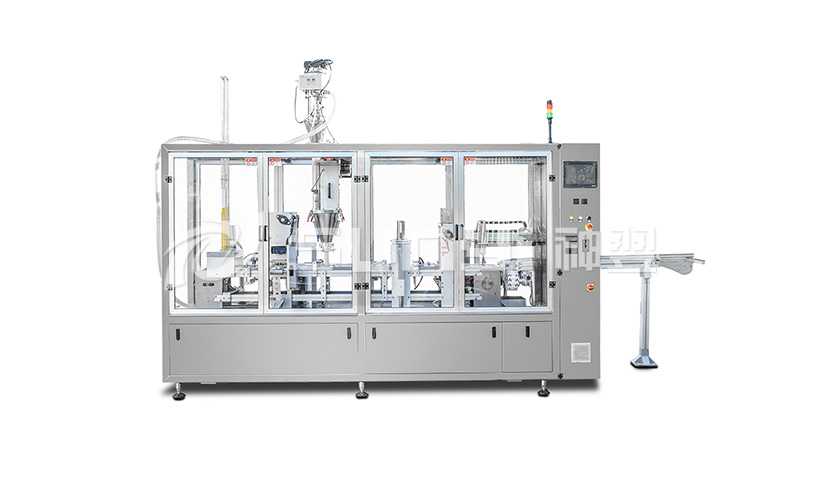

Automatic Coffee Capsule Filling Machine
Scope Of Application

Ground coffee powder , Tea powder , Instant soluble powder


Product Parameter


MACHINE PARTS

All the product contact parts are stainless steel AISI 304. The machine is constructed of stainless steel, anodized aluminum and plastic

CERTIFICATION

CE, FDA, CSA, ISO Compliant

PRODUCT

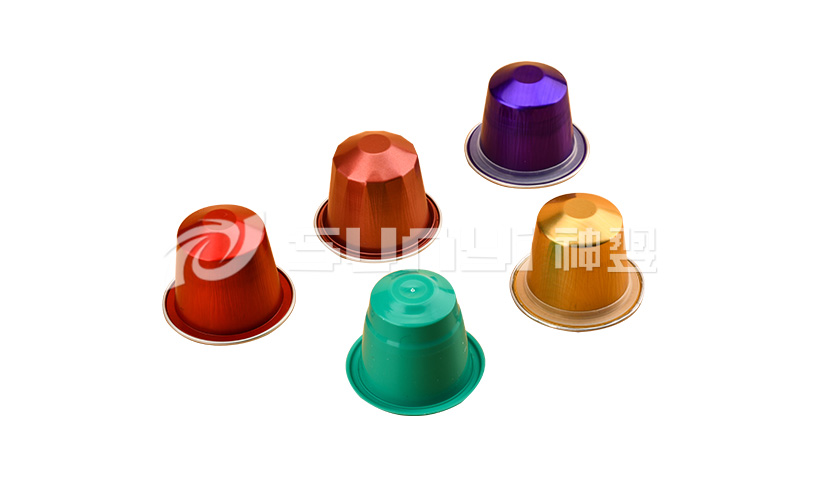

Ground coffee

SEALING STYLE

Precut aluminum foil

SYSTEM THROUGHPUT

80-130 per minute

COFFEE FEEDING

Servo driven auger filler

FILLING WEIGHT

2-6g

FILLING ACCURACY

±0.15g

POWER

3 PHASE  220/380V   50/60HZ   5KW

AIR SUPPLY PRESSURE

0.8Mpa

AIR CONSUMPTION

≥0.6Mpa/0.1m²

WEIGHT

950Kg

DIMENSION

3420mmX2200mX2688mm

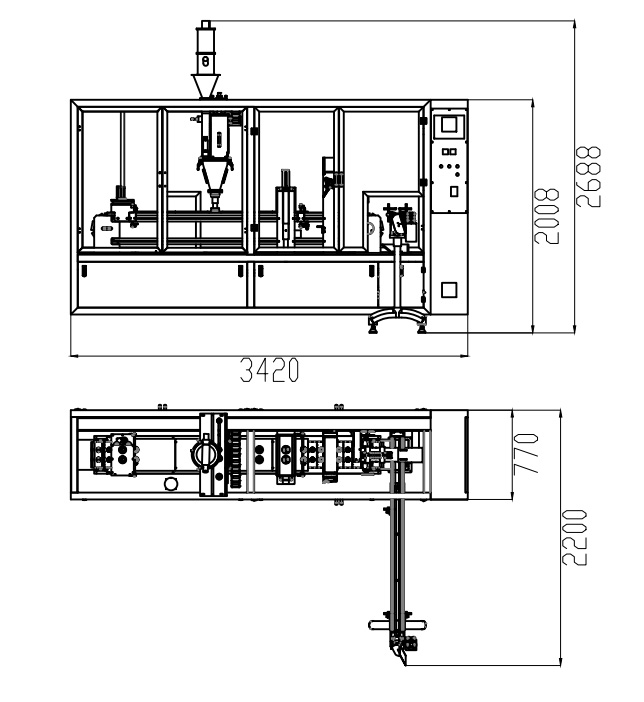

DRAWING

Attached below
